Generating and displaying images in a benchmark

This example shows two complementary ways to work with images in a benchmark:

1. Saving artifacts with get_run_output_path(): call this method from evaluate_result (or run) to obtain a per-run directory and write any file — PNG frames, checkpoints, logs — directly to disk.

2. Displaying images in the HTML report with the image plot type: return array data from evaluate_result and collect it in a custom BasePlot subclass to render a visual gallery (including animated GIFs) without any manual file management.

The benchmark solves a toy 2-D image denoising problem. Iterative solvers refine their estimate at each callback step; each intermediate reconstruction is both saved as a PNG via get_run_output_path() and returned as an array so the custom plot can build an animated GIF automatically.

First, we import example helpers to define the benchmark and run it in this example.

from benchopt.helpers.run_examples import ExampleBenchmark
from benchopt.helpers.run_examples import benchopt_cli

Benchmark components

We define each component (objective, dataset, solvers, custom plot) of the benchmark:

• The Dataset simulates a noisy checkerboard image.

• The Objective computes the MSE and saves each iteration as a PNG using get_run_output_path(), which returns a per-run directory unique to the (dataset, objective, solver, repetition) combination (see Saving run artifacts).

• The Solver implement two simple iterative denoising methods: a median filter and a total variation denoising method.

OBJECTIVE = """
    from benchopt import BaseObjective
    import numpy as np

    class Objective(BaseObjective):
        name = "Image Denoising"

        def set_data(self, X_true, X_noisy):
            self.X_true = X_true
            self.X_noisy = X_noisy
            self.n_eval_ = 0

        def get_objective(self):
            return dict(X_noisy=self.X_noisy)

        def evaluate_result(self, X_hat):
            self.n_eval_ += 1

            # Manually save intermediate reconstruction as a PNG file.
            # get_run_output_path() returns a directory unique to this
            # (dataset, objective, solver, repetition) combination.
            import matplotlib.pyplot as plt
            out_dir = self.get_run_output_path()
            plt.imsave(
                out_dir / f"frame_{self.n_eval_:03d}.png",
                X_hat, cmap="gray", vmin=0, vmax=1,
            )

            # Return a dict of metrics (MSE) and the current frame
            # for plotting in the HTML report (less manual than above).
            return dict(
                mse=float(np.mean((self.X_true - X_hat) ** 2)),
                frame=X_hat,
            )

        def save_final_results(self, X_hat):
            return dict(reference=self.X_true, noisy=self.X_noisy)

        def get_one_result(self):
            return dict(X_hat=self.X_noisy)
"""

DATASET = """
    from benchopt import BaseDataset
    import numpy as np

    class Dataset(BaseDataset):
        name = "simulated"
        parameters = {"n": [32, 128], "noise_std": [0.3], "random_state": [42]}

        def get_data(self):
            rng = np.random.default_rng(self.random_state)
            coords = np.arange(self.n)
            X_true = (
                (coords[:, None] // 4 + coords[None, :] // 4) % 2
            ).astype(float)
            X_noisy = X_true + rng.normal(0, self.noise_std, X_true.shape)
            return dict(X_true=X_true, X_noisy=X_noisy)
"""

SOLVER_MEDIAN = """
    from benchopt import BaseSolver
    from benchopt.stopping_criterion import SufficientProgressCriterion

    class Solver(BaseSolver):
        name = "median_filter"
        parameters = {"size": [3, 5]}

        stopping_criterion = SufficientProgressCriterion(
            key_to_monitor = "mse", strategy="callback"
        )

        def set_objective(self, X_noisy):
            self.X_noisy = X_noisy

        def run(self, cb):
            from scipy.ndimage import median_filter
            self.X_hat = self.X_noisy.copy()
            while cb():
                self.X_hat = median_filter(self.X_hat, size=self.size)

        def get_result(self):
            return dict(X_hat=self.X_hat)
"""

SOLVER_TV = """
    from benchopt import BaseSolver
    from benchopt.stopping_criterion import SufficientProgressCriterion
    import numpy as np

    class Solver(BaseSolver):
        name = "tv_denoise"
        parameters = {"lam": [0.1, 0.5]}

        stopping_criterion = SufficientProgressCriterion(
            key_to_monitor = "mse", strategy="callback"
        )

        def set_objective(self, X_noisy):
            self.X_noisy = X_noisy

        def run(self, cb):
            n = self.X_noisy.shape[0]
            p = np.zeros((n, n, 2))
            self.X_hat = self.X_noisy.copy()
            tau = 0.24
            while cb():
                div_p = np.zeros_like(self.X_hat)
                div_p[:-1, :] += p[:-1, :, 0]
                div_p[1:, :]  -= p[:-1, :, 0]
                div_p[:, :-1] += p[:, :-1, 1]
                div_p[:, 1:]  -= p[:, :-1, 1]
                X_upd = self.X_noisy + self.lam * div_p
                grad = np.zeros((n, n, 2))
                grad[:-1, :, 0] = X_upd[1:, :] - X_upd[:-1, :]
                grad[:, :-1, 1] = X_upd[:, 1:] - X_upd[:, :-1]
                p_new = p - tau * grad
                norms = np.maximum(
                    1.0,
                    np.sqrt((p_new ** 2).sum(axis=2, keepdims=True))
                )
                p = p_new / norms
                div_p = np.zeros_like(self.X_hat)
                div_p[:-1, :] += p[:-1, :, 0]
                div_p[1:, :]  -= p[:-1, :, 0]
                div_p[:, :-1] += p[:, :-1, 1]
                div_p[:, 1:]  -= p[:, :-1, 1]
                self.X_hat = self.X_noisy + self.lam * div_p

        def get_result(self):
            return dict(X_hat=self.X_hat)
"""

benchmark = ExampleBenchmark(
    name="image_denoising",
    objective=OBJECTIVE,
    datasets={"simulated.py": DATASET},
    solvers={
        "tv_denoise.py": SOLVER_TV,
        "median_filter.py": SOLVER_MEDIAN,
    }
)
benchmark






                    ⬇ Download

                    objective.py

    from benchopt import BaseObjective
    import numpy as np

    class Objective(BaseObjective):
        name = "Image Denoising"

        def set_data(self, X_true, X_noisy):
            self.X_true = X_true
            self.X_noisy = X_noisy
            self.n_eval_ = 0

        def get_objective(self):
            return dict(X_noisy=self.X_noisy)

        def evaluate_result(self, X_hat):
            self.n_eval_ += 1

            # Manually save intermediate reconstruction as a PNG file.
            # get_run_output_path() returns a directory unique to this
            # (dataset, objective, solver, repetition) combination.
            import matplotlib.pyplot as plt
            out_dir = self.get_run_output_path()
            plt.imsave(
                out_dir / f"frame_{self.n_eval_:03d}.png",
                X_hat, cmap="gray", vmin=0, vmax=1,
            )

            # Return a dict of metrics (MSE) and the current frame
            # for plotting in the HTML report (less manual than above).
            return dict(
                mse=float(np.mean((self.X_true - X_hat) ** 2)),
                frame=X_hat,
            )

        def save_final_results(self, X_hat):
            return dict(reference=self.X_true, noisy=self.X_noisy)

        def get_one_result(self):
            return dict(X_hat=self.X_noisy)


datasets/simulated.py
from benchopt import BaseDataset
import numpy as np

class Dataset(BaseDataset):
    name = "simulated"
    parameters = {"n": [32, 128], "noise_std": [0.3], "random_state": [42]}

    def get_data(self):
        rng = np.random.default_rng(self.random_state)
        coords = np.arange(self.n)
        X_true = (
            (coords[:, None] // 4 + coords[None, :] // 4) % 2
        ).astype(float)
        X_noisy = X_true + rng.normal(0, self.noise_std, X_true.shape)
        return dict(X_true=X_true, X_noisy=X_noisy)


solvers/tv_denoise.py
from benchopt import BaseSolver
from benchopt.stopping_criterion import SufficientProgressCriterion
import numpy as np

class Solver(BaseSolver):
    name = "tv_denoise"
    parameters = {"lam": [0.1, 0.5]}

    stopping_criterion = SufficientProgressCriterion(
        key_to_monitor = "mse", strategy="callback"
    )

    def set_objective(self, X_noisy):
        self.X_noisy = X_noisy

    def run(self, cb):
        n = self.X_noisy.shape[0]
        p = np.zeros((n, n, 2))
        self.X_hat = self.X_noisy.copy()
        tau = 0.24
        while cb():
            div_p = np.zeros_like(self.X_hat)
            div_p[:-1, :] += p[:-1, :, 0]
            div_p[1:, :]  -= p[:-1, :, 0]
            div_p[:, :-1] += p[:, :-1, 1]
            div_p[:, 1:]  -= p[:, :-1, 1]
            X_upd = self.X_noisy + self.lam * div_p
            grad = np.zeros((n, n, 2))
            grad[:-1, :, 0] = X_upd[1:, :] - X_upd[:-1, :]
            grad[:, :-1, 1] = X_upd[:, 1:] - X_upd[:, :-1]
            p_new = p - tau * grad
            norms = np.maximum(
                1.0,
                np.sqrt((p_new ** 2).sum(axis=2, keepdims=True))
            )
            p = p_new / norms
            div_p = np.zeros_like(self.X_hat)
            div_p[:-1, :] += p[:-1, :, 0]
            div_p[1:, :]  -= p[:-1, :, 0]
            div_p[:, :-1] += p[:, :-1, 1]
            div_p[:, 1:]  -= p[:, :-1, 1]
            self.X_hat = self.X_noisy + self.lam * div_p

    def get_result(self):
        return dict(X_hat=self.X_hat)


solvers/median_filter.py
from benchopt import BaseSolver
from benchopt.stopping_criterion import SufficientProgressCriterion

class Solver(BaseSolver):
    name = "median_filter"
    parameters = {"size": [3, 5]}

    stopping_criterion = SufficientProgressCriterion(
        key_to_monitor = "mse", strategy="callback"
    )

    def set_objective(self, X_noisy):
        self.X_noisy = X_noisy

    def run(self, cb):
        from scipy.ndimage import median_filter
        self.X_hat = self.X_noisy.copy()
        while cb():
            self.X_hat = median_filter(self.X_hat, size=self.size)

    def get_result(self):
        return dict(X_hat=self.X_hat)




"


Run the benchmark

We run the benchmark first. Because evaluate_result calls get_run_output_path(), each solver’s intermediate frames are saved to disk under <benchmark>/outputs/<run_name>/.

benchopt_cli(
    f"run {benchmark.benchmark_dir} -n 5 -r 1"
)

$ benchopt run temp_benchmark_cjgyzgld/image_denoising -n 5 -r 1

Benchopt is running!
Loading objective, datasets and solvers... done.
simulated[n=32,noise_std=0.3,random_state=42]
  |--Image Denoising
No seed was specified. Selected global seed: 0
    |--median_filter[size=3]: done
    |--median_filter[size=5]: done
    |--tv_denoise[lam=0.1]: done
    |--tv_denoise[lam=0.5]: done
simulated[n=128,noise_std=0.3,random_state=42]
  |--Image Denoising
    |--median_filter[size=3]: done
    |--median_filter[size=5]: done
    |--tv_denoise[lam=0.1]: done
    |--tv_denoise[lam=0.5]: done
Saving result in:
temp_benchmark_cjgyzgld/image_denoising/outputs/benchopt_run_2026-09-21_11h17m
51.parquet
Rendering benchmark results...
   Processing
temp_benchmark_cjgyzgld/image_denoising/outputs/benchopt_run_2026-09-21_11h17m
51.parquet
done
Writing results to
temp_benchmark_cjgyzgld/image_denoising/outputs/image_denoising_benchopt_run_2
026-09-21_11h17m51.html
Writing image_denoising index to
temp_benchmark_cjgyzgld/image_denoising/outputs/image_denoising.html

Accessing saved artifacts

The PNG frames saved by get_run_output_path() are now on disk and can be read back with any standard tool. Here we display a few of them directly:

import matplotlib.pyplot as plt

png_files = sorted(
    (benchmark.benchmark_dir / "outputs").glob("**/*.png")
)
print(f"{len(png_files)} PNG frames saved across all runs.")

sample = png_files[:4]
fig, axes = plt.subplots(1, len(sample), figsize=(3 * len(sample), 3))
for ax, p in zip(axes, sample):
    ax.imshow(plt.imread(p), cmap="gray", vmin=0, vmax=1)
    ax.set_title(f"{p.parent.name}\n{p.name}", fontsize=7)
    ax.axis("off")
fig.suptitle("Frames saved via get_run_output_path() — accessed manually")
plt.tight_layout()
plt.show()

34 PNG frames saved across all runs.

This works, but requires manually navigating the output directory tree. The image plot type below is the more convenient alternative for embedding reconstructions directly in the benchopt HTML report.

The image plot type

A custom BasePlot subclass with type = "image" must return from plot() a list of dicts, each with at least:

• "image" — a 2D/3D NumPy array or a list of arrays (animated GIF);

• "label" — text displayed below the image card.

Note that if image type is not compatible with Pillow (not an array or list of arrays),

get_metadata() may return "ncols" to control the grid layout.

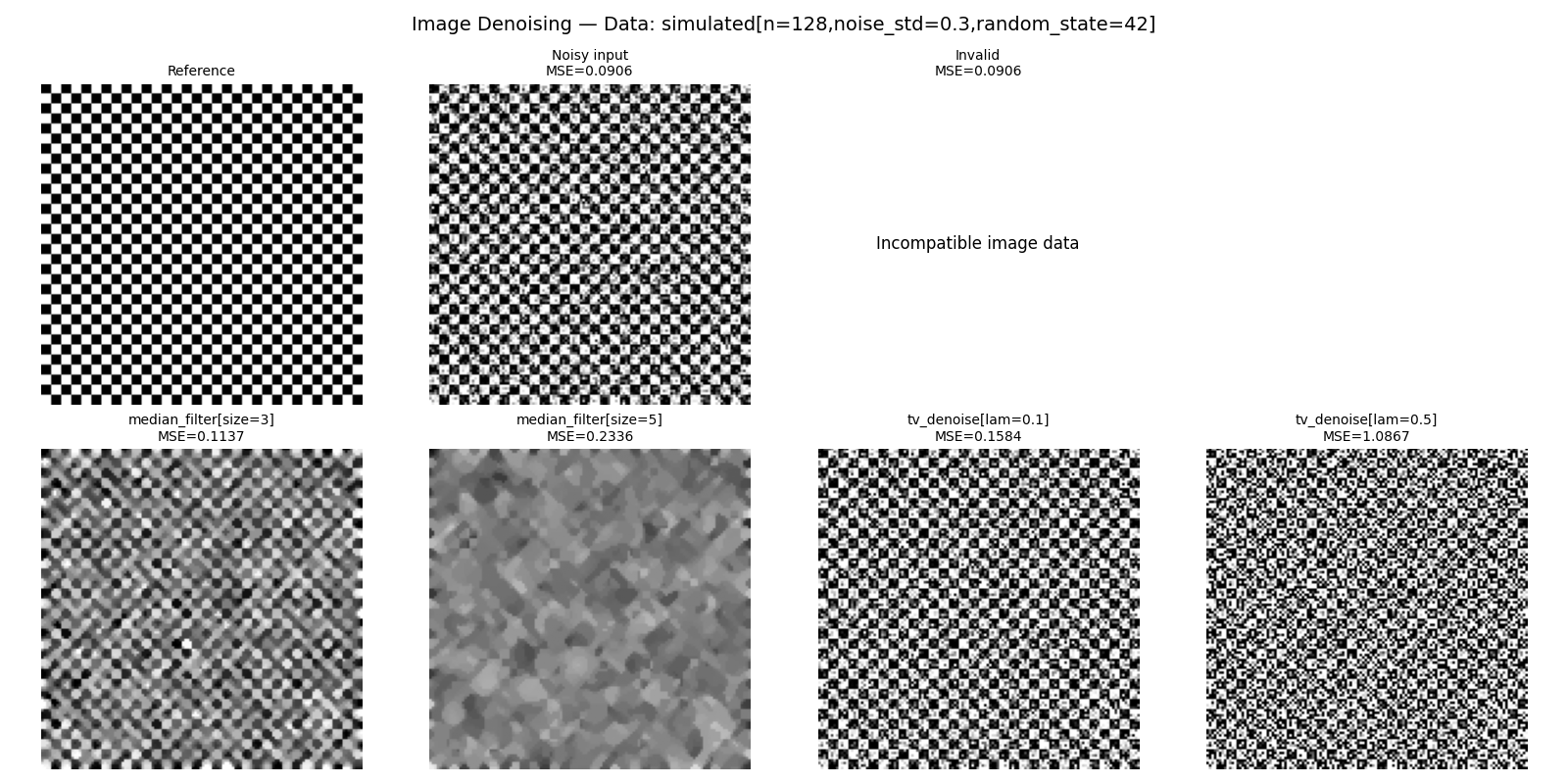

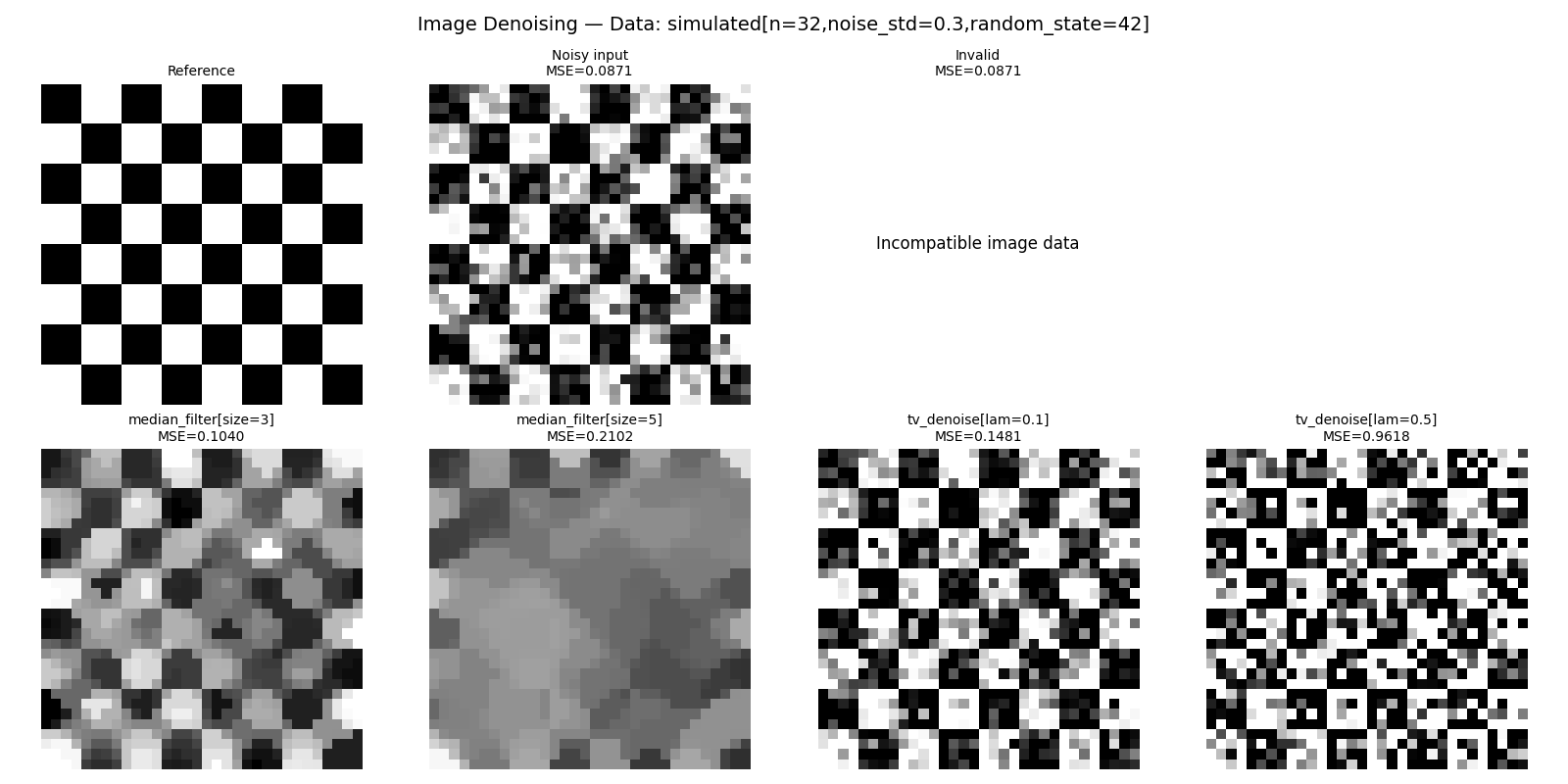

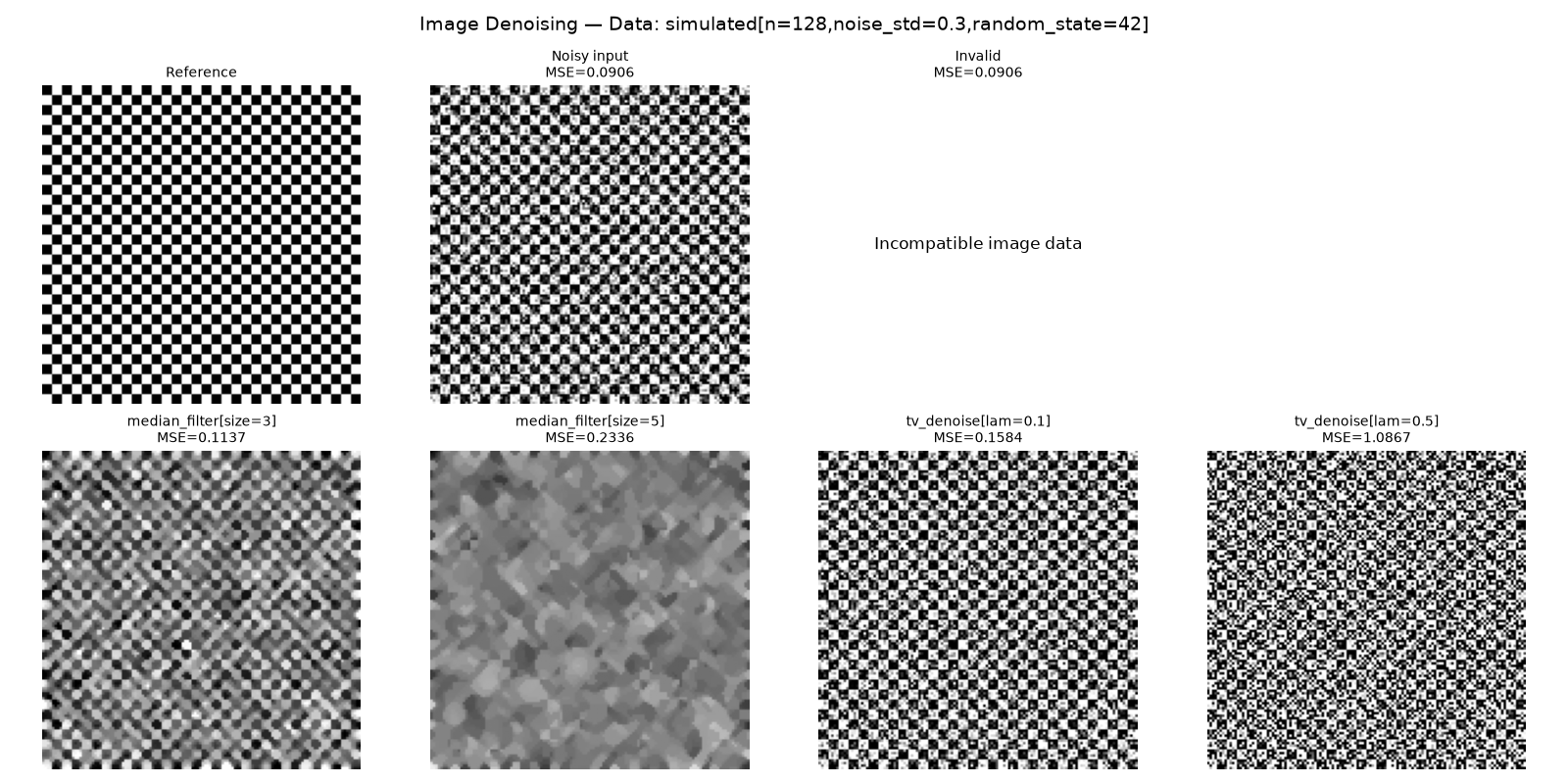

Here, evaluate_result stores frame=X_hat alongside the scalar mse. The plot collects all per-iteration frames from the objective_frame column and passes the list to the "image" key; benchopt plotting API converts this list of arrays to an animated GIF automatically.

save_final_results stores the reference and noisy images only once; so the plot reads them from the final_results column to retrieve the reference and noisy images.

CONFIG = """
plots:
- reconstruction
- objective_curve
- bar_chart
- boxplot
- table
"""

PLOT = """
    import numpy as np
    from benchopt import BasePlot

    class Plot(BasePlot):
        name = "reconstruction"
        type = "image"
        options = {"dataset": ..., "objective": ...}

        def plot(self, df, dataset, objective):
            df = df.query(
                "dataset_name == @dataset and objective_name == @objective"
            )
            # Get reference and noisy from final_results (only stored once)
            final = df["final_results"].dropna().iloc[0]
            ref = final["reference"]
            noisy = final["noisy"]
            mse_noisy = float(np.mean((ref - noisy) ** 2))
            images = [
                {"image": ref, "label": "Reference"},
                {"image": noisy,
                 "label": f"Noisy input\\nMSE={mse_noisy:.4f}"},
                # Image should be a 2D array. If incompatible, it will appear
                # with a message in the plot.
                {"image": "skdjf",  # noisy,
                 "label": f"Invalid\\nMSE={mse_noisy:.4f}"},
                # Returning None insert an empty slot for alignment
                {"image": None},
            ]
            for solver_name, sdf in df.groupby("solver_name"):
                frames = (
                    sdf.sort_values("stop_val")["objective_frame"].tolist()
                )
                last_mse = sdf.loc[sdf["stop_val"].idxmax(), "objective_mse"]
                images.append({
                    "image": frames,  # list of arrays → animated GIF
                    "label": f"{solver_name}\\nMSE={last_mse:.4f}",
                })
            return images

        def get_metadata(self, df, dataset, objective):
            n = len(df.query(
                "dataset_name == @dataset and objective_name == @objective"
            )["solver_name"].unique())
            return {
                "title": f"{objective} — Data: {dataset}",
                "ncols": min(n + 2, 4),  # +2 for reference and noisy input
            }
"""

benchmark.update(
    plots={"reconstruction.py": PLOT},
    extra_files={"config.yml": CONFIG},
)




We now update the following files:




                    ⬇ Download

                    plots/reconstruction.py
import numpy as np
from benchopt import BasePlot

class Plot(BasePlot):
    name = "reconstruction"
    type = "image"
    options = {"dataset": ..., "objective": ...}

    def plot(self, df, dataset, objective):
        df = df.query(
            "dataset_name == @dataset and objective_name == @objective"
        )
        # Get reference and noisy from final_results (only stored once)
        final = df["final_results"].dropna().iloc[0]
        ref = final["reference"]
        noisy = final["noisy"]
        mse_noisy = float(np.mean((ref - noisy) ** 2))
        images = [
            {"image": ref, "label": "Reference"},
            {"image": noisy,
             "label": f"Noisy input\nMSE={mse_noisy:.4f}"},
            # Image should be a 2D array. If incompatible, it will appear
            # with a message in the plot.
            {"image": "skdjf",  # noisy,
             "label": f"Invalid\nMSE={mse_noisy:.4f}"},
            # Returning None insert an empty slot for alignment
            {"image": None},
        ]
        for solver_name, sdf in df.groupby("solver_name"):
            frames = (
                sdf.sort_values("stop_val")["objective_frame"].tolist()
            )
            last_mse = sdf.loc[sdf["stop_val"].idxmax(), "objective_mse"]
            images.append({
                "image": frames,  # list of arrays → animated GIF
                "label": f"{solver_name}\nMSE={last_mse:.4f}",
            })
        return images

    def get_metadata(self, df, dataset, objective):
        n = len(df.query(
            "dataset_name == @dataset and objective_name == @objective"
        )["solver_name"].unique())
        return {
            "title": f"{objective} — Data: {dataset}",
            "ncols": min(n + 2, 4),  # +2 for reference and noisy input
        }


config.yml
plots:
- reconstruction
- objective_curve
- bar_chart
- boxplot
- table




"


Generate the HTML report

The benchmark was already run above; benchopt plot reads the cached results and generates the HTML report with the image plot type.

benchopt_cli(
    f"plot {benchmark.benchmark_dir}"
)

$ benchopt plot temp_benchmark_cjgyzgld/image_denoising

Rendering benchmark results...
   Processing
temp_benchmark_cjgyzgld/image_denoising/outputs/benchopt_run_2026-09-21_11h17m
51.parquetTraceback (most recent call last):
  File "/home/circleci/project/benchopt/plotting/helpers.py", line 61, in
update_plot_data_style
    raise ValueError(
ValueError: Incompatible image data: <class 'str'>
Traceback (most recent call last):
  File "/home/circleci/project/benchopt/plotting/helpers.py", line 61, in
update_plot_data_style
    raise ValueError(
ValueError: Incompatible image data: <class 'str'>

done
Writing results to
temp_benchmark_cjgyzgld/image_denoising/outputs/image_denoising_benchopt_run_2
026-09-21_11h17m51.html
Writing image_denoising index to
temp_benchmark_cjgyzgld/image_denoising/outputs/image_denoising.html

In the resulting HTML page, the selected reconstruction in the Chart type dropdown shows the image grid. Each card shows an animated GIF of the solver iterating toward its final denoised image, alongside its final MSE.

Reference and noisy images are shown as static images for comparison. All arrays are embedded as base64-encoded data URIs directly in the HTML file, so the page is fully self-contained.

Note that you can also generate the plot as a static image with --no-html option, generating a pdf file in the output directory of the benchmark.

benchopt_cli(
    f"plot {benchmark.benchmark_dir} --no-html --kind reconstruction"
)

•
•

$ benchopt plot temp_benchmark_cjgyzgld/image_denoising --no-html --kind reconstruction

Error rendering image 'Invalid':

Traceback (most recent call last):
  File "/home/circleci/project/benchopt/plotting/generate_matplotlib.py", line
237, in get_plot_image
    raise ValueError(f"Incompatible image data: {type(image)}")
ValueError: Incompatible image data: <class 'str'>
------------------------------

Save reconstruction_simulated[n=32,noise_std=0.3,random_state=42]_Image
Denoising as:
temp_benchmark_cjgyzgld/image_denoising/outputs/reconstruction_simulated[n=32,
noise_std=0.pdf


Error rendering image 'Invalid':

Traceback (most recent call last):
  File "/home/circleci/project/benchopt/plotting/generate_matplotlib.py", line
237, in get_plot_image
    raise ValueError(f"Incompatible image data: {type(image)}")
ValueError: Incompatible image data: <class 'str'>
------------------------------

Save reconstruction_simulated[n=128,noise_std=0.3,random_state=42]_Image
Denoising as:
temp_benchmark_cjgyzgld/image_denoising/outputs/reconstruction_simulated[n=128
,noise_std=0.pdf
